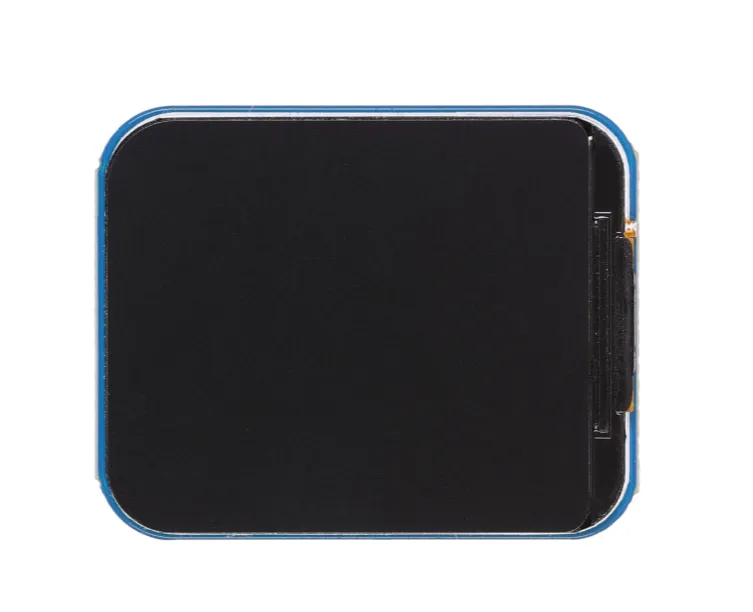

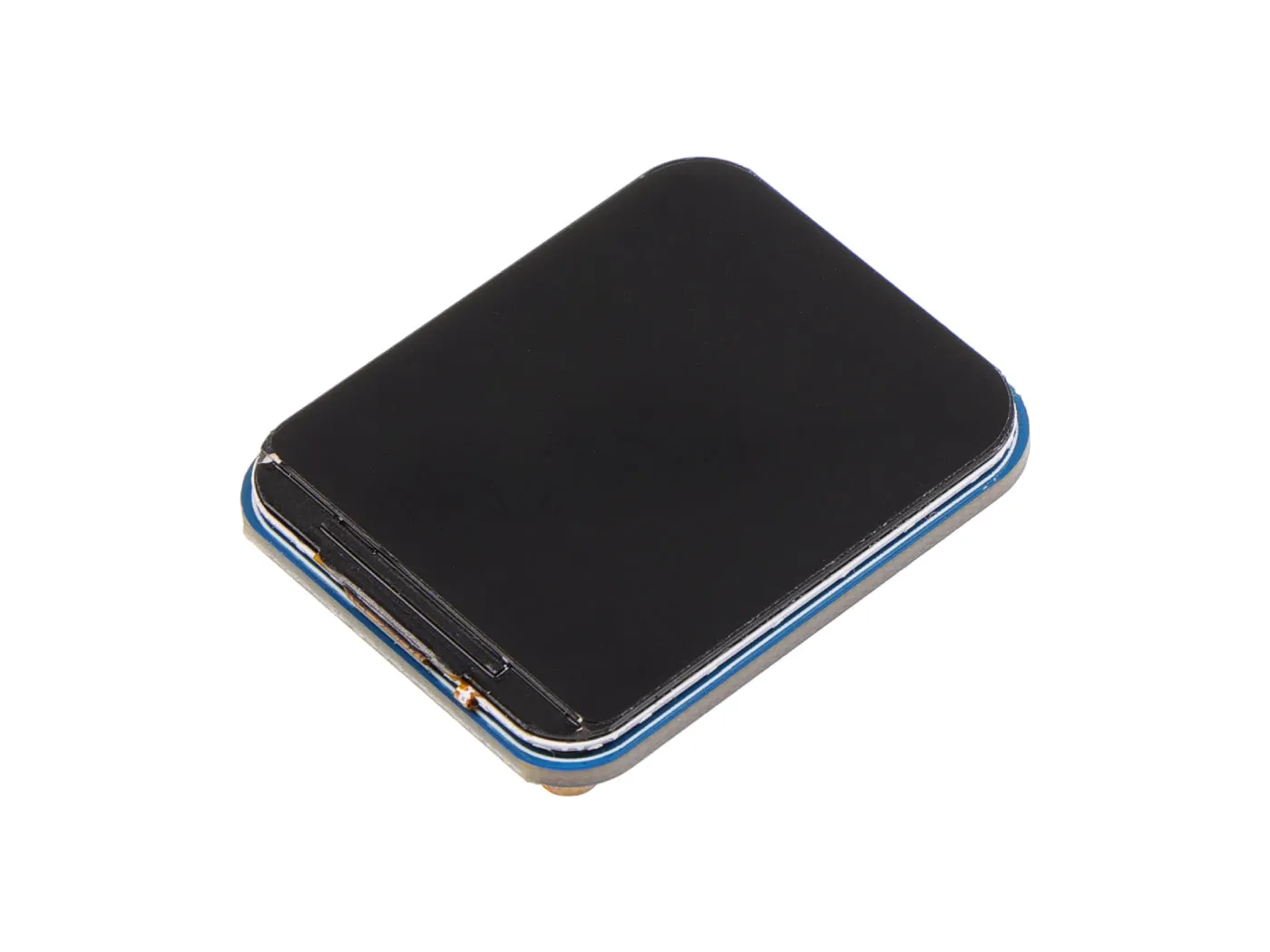

This 1.69-inch LCD Display Module offers a stunning resolution of 240x280 and a vivid image with 262K colors. The IPS technology ensures great clarity and color accuracy. Intervention with IO pins is minimal thanks to the SPI interface, which is also compatible with controller boards such as Raspberry Pi, Arduino, and STM32.
Feature
- Outstanding Display Effect: 240×280 resolution, 262K colors, clear and colorful displaying effect
- Versatile Interfaces: SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Abundant Online Course: Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Description
A 1.69" LCD Display Module with 240x280 resolution and 262K colors, provides clear visuals with IPS technology. Its SPI interface enables easy integration with Raspberry Pi, Arduino, and STM32.
This display module holds promising applications across a spectrum of projects. Its high resolution and vibrant display make it an excellent fit for crafting small, portable devices such as smartwatches, digital photo frames, or handheld gaming consoles. Leveraging its multi-functional SPI interface, it can be seamlessly integrated into projects involving data visualization, real-time monitoring, or interactive interfaces. Furthermore, the abundance of online course resources provides developers with platform-specific examples for Raspberry Pi, Arduino, and STM32, fostering practical implementation of innovative ideas.
Whether you're an individual enthusiast or a seasoned developer, this display module unlocks opportunities for creativity and innovation. Whether enhancing personal projects or seeking premium display solutions for commercial product development, the 1.69-inch LCD Display Module stands as an intriguing choice.
Application
- Smartwatches
- Digital Photo Frames
- Handheld Gaming Consoles
Specification
|
Feature |
Details |
|
OPERATING VOLTAGE |
3.3V / 5V |
|
COMMUNICATION INTERFACE |
4-wire SPI |
|
DISPLAY PANEL |
IPS |
|
DRIVER |
ST7789V2 |
|
RESOLUTION |
240 × 280 pixels |
|
DISPLAY SIZE |

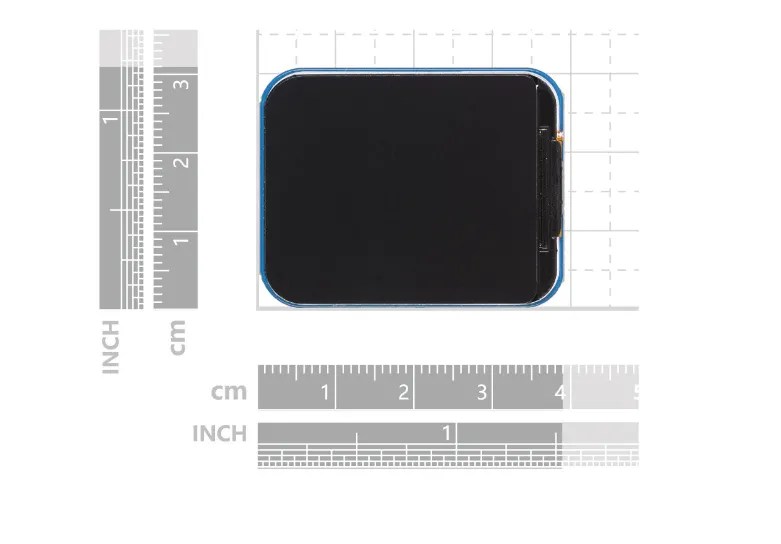

27.97 × 32.63mm |
|
PIXEL SIZE |
0.11655 × 0.11655mm |
|
MODULE SIZE |
31.50 × 39.00mm |

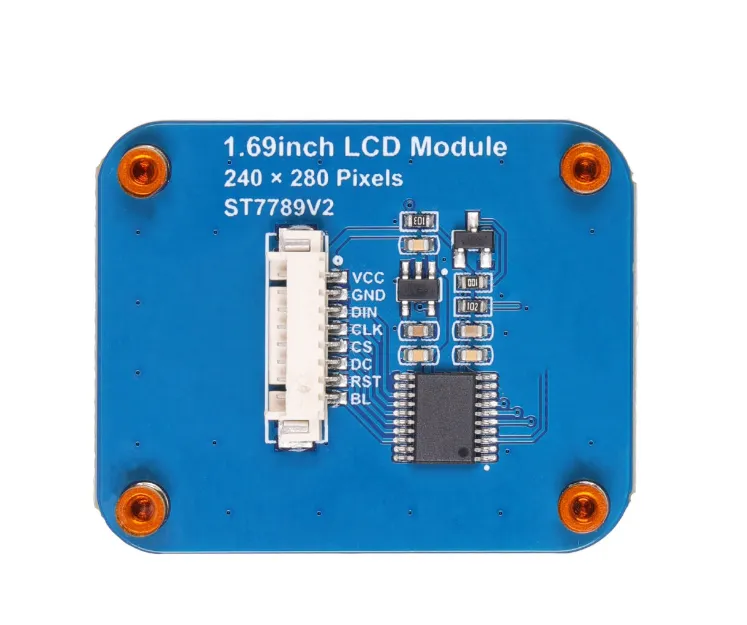

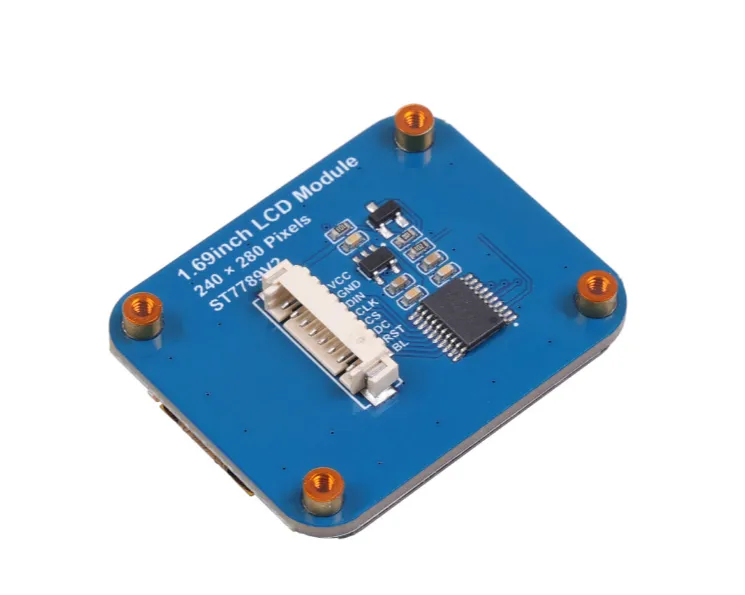

Hardware Overview
|
VCC |
Power (3.3V / 5V input) |
|
GND |
Ground |
|
DIN |
SPI data input |
|
CLK |
SPI clock input |
|
CS |
Chip selection, low active |
|
DC |
Data/Command selection (high for data, low for command) |
|
RST |
Reset, low active |
|
BL |
Backlight |

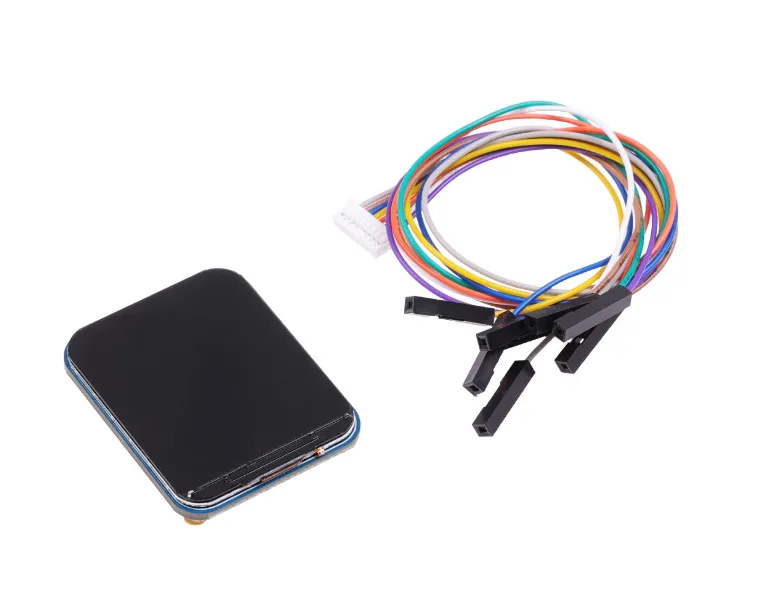

Part List
|
1.69inch LCD Module |
×1 |
|

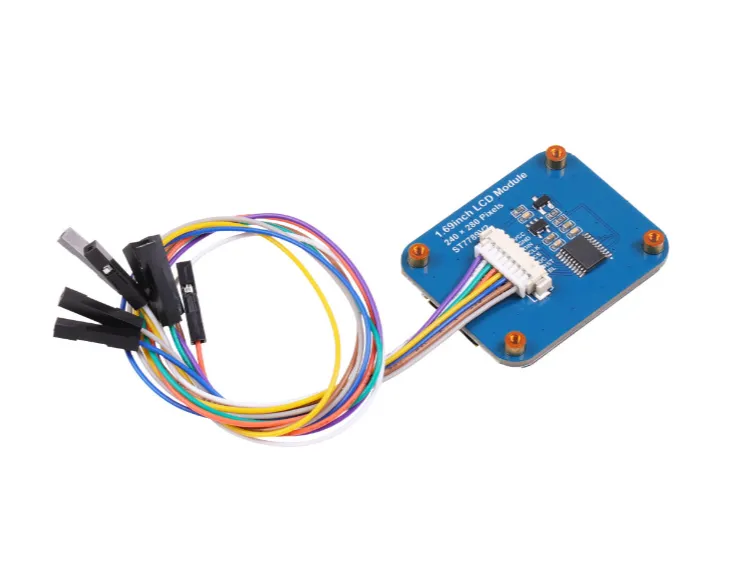

GH1.25 20cm 8Pin cable |
×1 |
FAQ
Q: What is the maximum power consumption of 1.69inch LCD Module?
A: 3.3V 90mA
Q: The maximum brightness of 1.69-inch LCD Module is?
A: 3.3V 500cd/㎡
ECCN/HTS
| HSCODE | 8531200000 |
| USHSCODE | 8531809051 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
