Introducing the 1.47-inch LCD Display Module, a powerhouse boasting an impressive 172x320 resolution and a vibrant palette of 262K colors. Seamlessly integrating innovation with convenience, this module comes equipped with an optimized SPI interface that not only conserves IO pins but also establishes compatibility with renowned controller boards like Raspberry Pi, Arduino, and STM32.
Feature
- Outstanding Display Effect: 172×320 resolution, 262K RGB colors, clear and colorful displaying effect
- Versatile Interfaces: SPI interface, minimizes required IO pins, supports controller boards like Raspberry Pi/Arduino/STM32
- Abundant Online Course: Comes with online development resources (examples for Raspberry Pi/Arduino/STM32)
Description
The 1.47-inch LCD Display Module boasts an impressive 172x320 resolution, immersing users in a vivid spectrum of 262K colors. Its dynamic features pave the way for limitless possibilities across diverse applications. Equipped with a versatile SPI interface, this module not only conserves IO pins but also harmoniously syncs with popular controller boards including Raspberry Pi, Arduino, and STM32.
This display module proves to be a game-changer across an array of projects. Its high-definition resolution coupled with its vibrant display make it an impeccable choice for devising compact and portable gadgets like smartwatches, digital photo frames, and handheld gaming consoles. The module's multi-functional SPI interface enables seamless integration into ventures encompassing data visualization, real-time monitoring, and interactive interfaces. Moreover, developers are met with a wealth of online resources, offering platform-specific exemplars for Raspberry Pi, Arduino, and STM32, thus nurturing the pragmatic realization of ingenious concepts.
Whether you're an individual enthusiast or a seasoned developer, this display module unlocks opportunities for creativity and innovation. Whether enhancing personal projects or seeking premium display solutions for commercial product development, the 1.47-inch LCD Display Module stands as an intriguing choice.
Application
- Smartwatches
- Digital Photo Frames
- Handheld Gaming Consoles
Specification
|
Feature |
Details |
|
OPERATING VOLTAGE |
3.3V / 5V |
|
COMMUNICATION INTERFACE |
4-wire SPI |
|
DISPLAY PANEL |
IPS |
|
DRIVER |
ST7789V3 |
|
RESOLUTION |
172 × 320 pixels |
|
DISPLAY SIZE |
17.39 × 32.35mm |
|
PIXEL PITCH |
0.0337 × 0.1011mm |
|

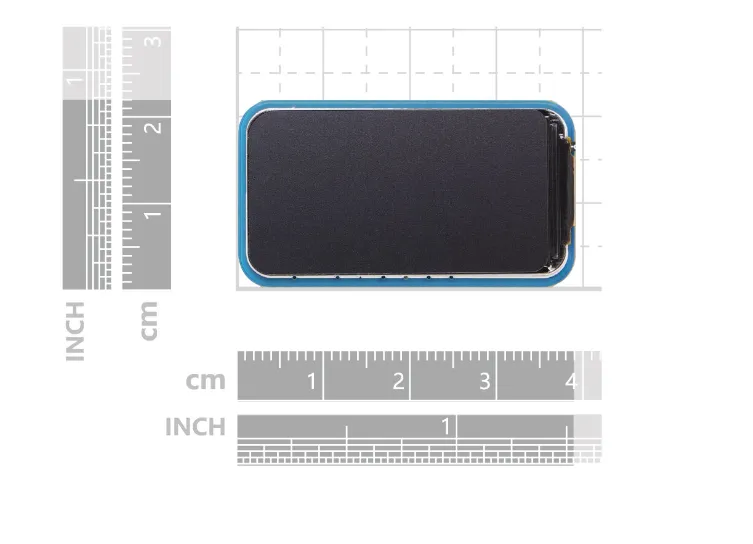

DIMENSIONS |
22.0 × 38.5mm |

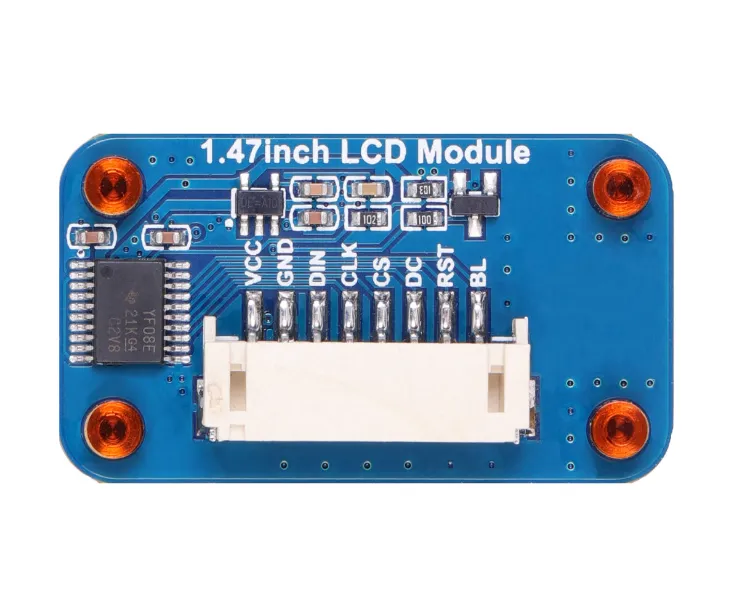

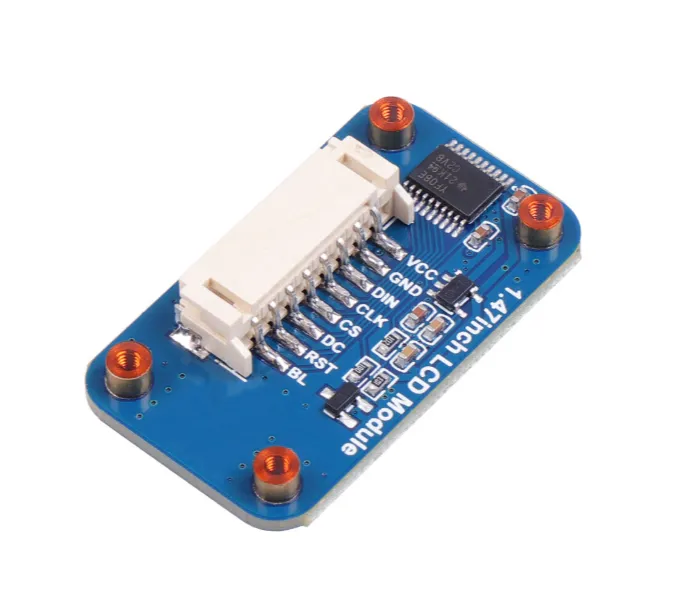

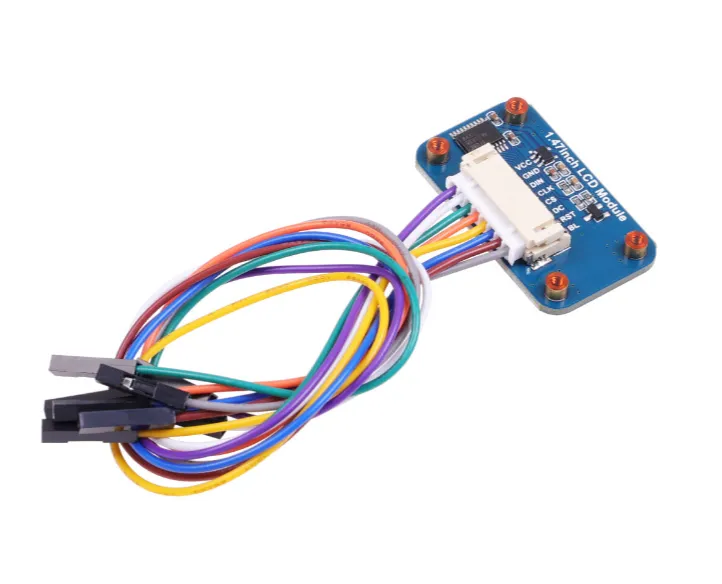

Hardware Overview
|
VCC |
Power (3.3V / 5V input) |
|
GND |
Ground |
|
DIN |
SPI data input |
|
CLK |
SPI clock input |
|
CS |
Chip selection, low active |
|
DC |
Data/Command selection (high for data, low for command) |
|
RST |
Reset, low active |
|
BL |
Backlight |

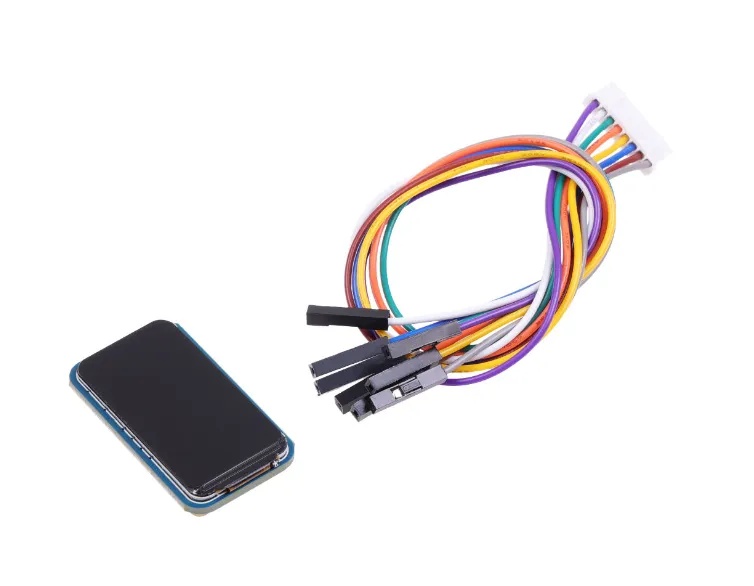

Part List
|
1.47inch LCD Module |
×1 |
|
GH1.25 20cm 8Pin cable |
×1 |
FAQ
Q: What is the maximum power consumption of 1.47-inch LCD Module?
A: 3.3V 47mA
ECCN/HTS
| HSCODE | 8531200000 |
| USHSCODE | 8531809051 |
| UPC | |
| EUHSCODE | 8531202090 |
| COO | CHINA |
